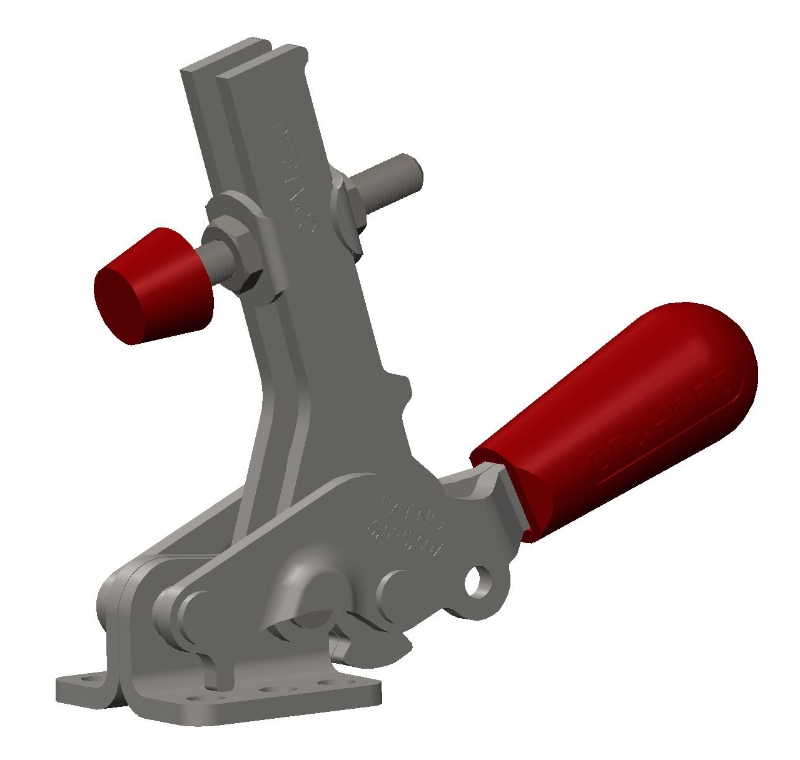

DESTACO BRIDA 2002-U

BRIDA SOPORTE DE BLOQUEO CON RETENCIÓN VERTICAL.

Pinza de palanca de nueva generación con 3 veces la capacidad de nuestros modelos heredados.
Mango más largo con mayor espacio para las manos.
Brazo de sujeción más largo.
Husillo vertical.

CARACTERÍSTICAS TÉCNICAS

· Maxmum Holding Capacity (N): 2,700
· Maximum Holding Capacity (lbsf): 600
· Clamp Arm Length (mm): 49.0
· Clamp Arm Length (in): 1.930
· Height Under Clamp Arm (mm): 24.1
· Height Under Clamp Arm (in): 0.950
· Clamp Bar Opening (+10°) (degrees): 75
· Handle Opening (+10°): 66
· Available: Yes
· Standard Material: Steel
· Toggle Lock Plus: No
· Accomodates Workpiece Variation: No
· Base Mounting Style: Flange
· Clamp Arm Style: U-Bar
· Handle: Vertical
· Service Environment: Normal
· Application - Welding: Fair/Medium
· Application - Assembly: Excellent/High
· Application - Checking Fixtures: Excellent/High
· Application - Machining: Poor/Low
· Application - Wood-Working: Excellent/High
· Application - Closures: Excellent/High
· Application - Food Processing: Not Recommended
· Duty Cycle: 2
· Product Type: Standard
· Weight (kg): 0.22
· Weight (lb): 0.49
· Product Series Description: Vertical Clamp
